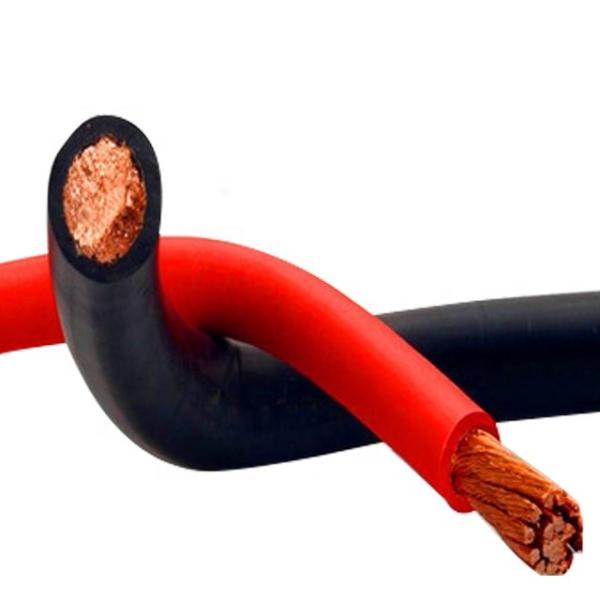

Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable

Product Categories
Qingdao Yilan Cable Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable

Place of Origin : Hebei, China

Brand Name : HOLD-ONE

Model Number : YH,YHF,H01N2-D,HO1N2-E

MOQ : 100-1999 Meters

Price : $1.20

Insulation Material : rubber,pvc,cpe

Type : Low Voltage, low voltage

Application : Industrial, industrial

Conductor Material : Copper,aluminum,alloy aluminum

Jacket : rubber,pvc,epdm,neoprene

Product name : battery cable cu flexible rubber pvc welding cable 35mm2 50mm2

Conductor : copper,aluminum,alloy aluminum

Standard : IEC60245

Rated Voltage : 450/750V

Temperature Range : -45℃-+105℃

Number of Cores : single core

Color : red,black,orange,or as your requirement

Sample : available

Selling Units : Single item

Single package size  : 2X2X10 cm

Single gross weight : 1.000 kg

Package Type : in rolls or in drum

Contact Now

Cu Rubber Pvc 35mm2 50mm2 Flexible Welding Cable



Product Description



construction of welding cable

conductor:copper,aluminum,alloy aluminum,copper clad aluminum

Jacket:rubber,pvc,epdm,neoprene rubber

insulation:rubber,pvc,cpe

color:black,red,orange or as your requirement

Voltage:450-750V

Cross section:10mm2-185mm2

Temperature rating:-30 ℃  to  90℃ for rubber welding cable,-45 ℃  to  105℃ for neoprene rubber welding cable/pvc battery cable



Spec of H01N2-D H01N2-E welding cable



Nom.
Area
mm2

Max. Dia.
of wire
mm

Nom.
Cover
Thickness
mm

Average O.D. mm

Maximum DC
Resistance at 20℃
Ω/km

Min.

Max.

Tinned copper

Un tinned copper

10

0.21

2.0

7.7

9.7

1.95

1.91

16

2.0

8.8

11.0

1.24

1.21

25

2.0

10.1

12.7

0.795

0.780

35

2.0

11.4

14.2

0.565

0.554

50

2.2

13.2

16.5

0.393

0.386

70

2.4

15.3

19.2

0.277

0.272

95

2.6

17.1

21.4

0.210

0.206

120

0.51

2.8

19.2

24.0

0.164

0.161

150

3.0

21.1

26.4

0.132

0.129

185

3.2

23.1

28.9

0.108

0.106


For USA standard,AWG welding cable also can be done.

OEM ODM also can be done.



Application



Welding cable can be used as connections for electrode holder and grounding clamp to arc welder, bus, inverter or transformer-style weld machines. Also suitable for certain 600V applications such as battery leads and jumper cables



Packaging & Shipping

in rolls or in drums

Delivery time:5-7 days for 20000 meters below
